Description

The backside of the switch is completely sealed and weatherproofed with a tough, waterproof polymer coating. Keeps out dirt, dust and moisture!

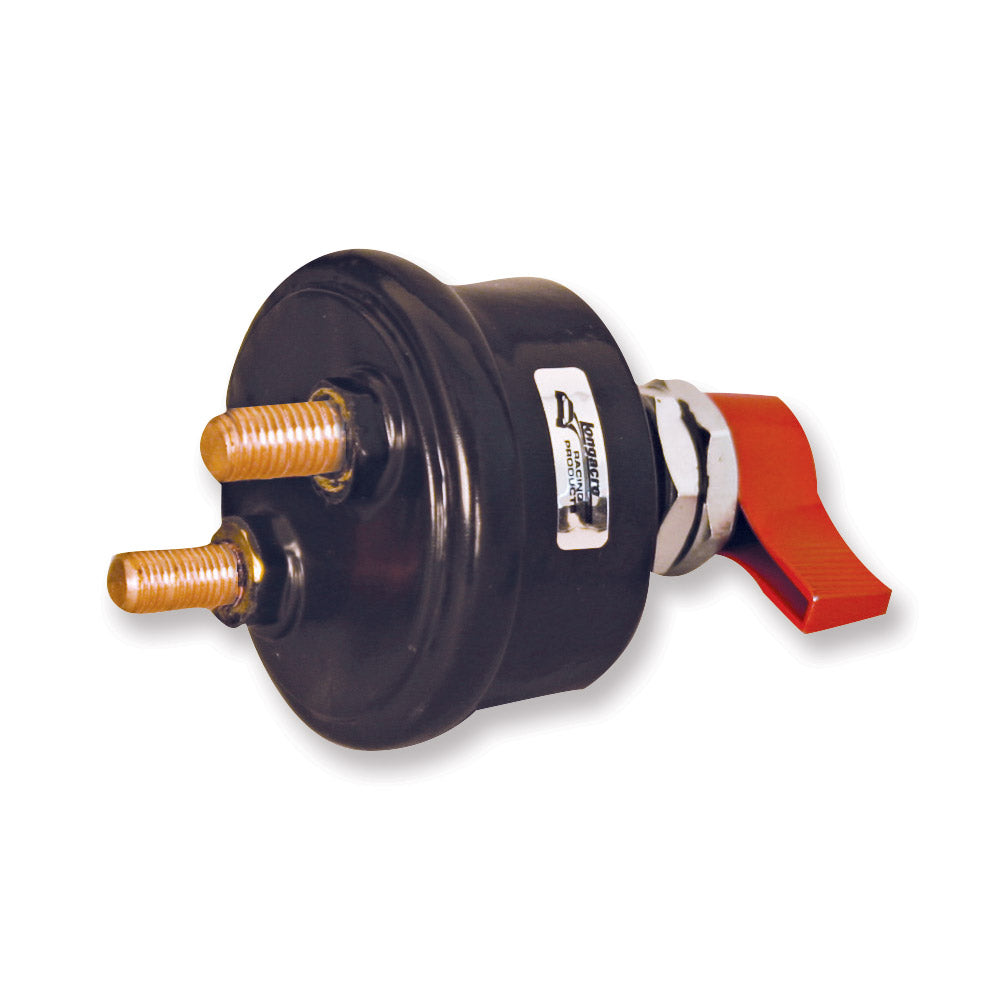

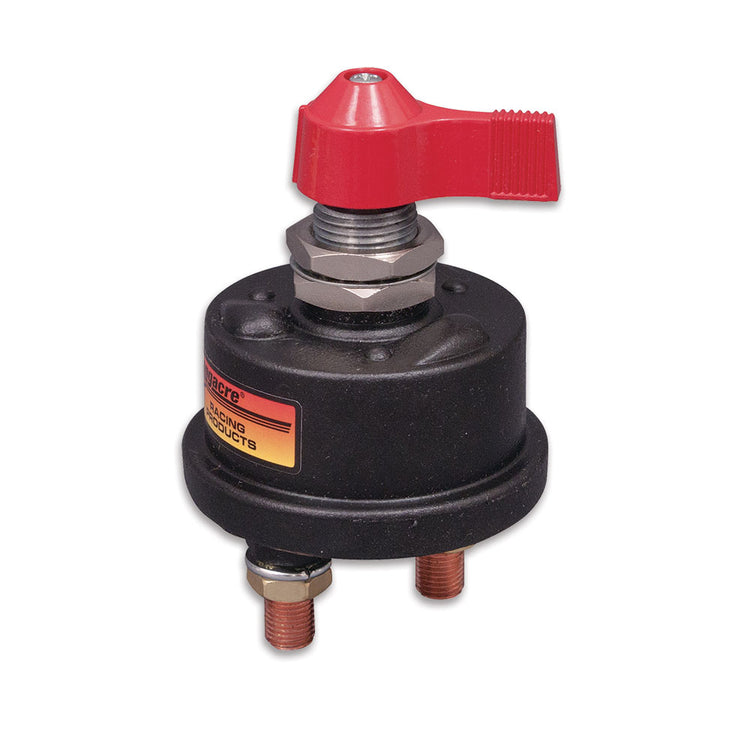

  • Manual battery disconnect switch with a bright red handle
  • Easier to find in an emergency
  • Prevents battery drain
  • 175 amp continuous rating, 6-36 volt, 1000 peak

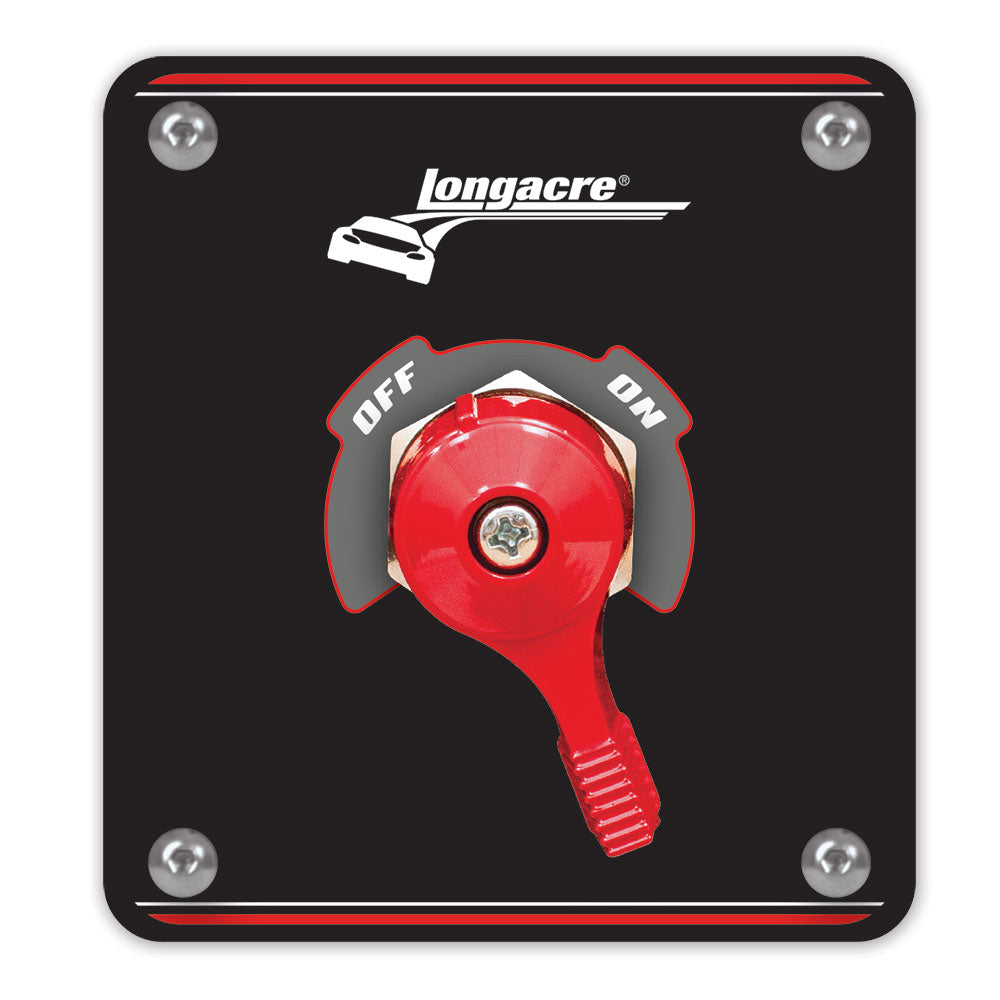

  • Great looking Aluminum Panel - black anodized with clean, modern graphics

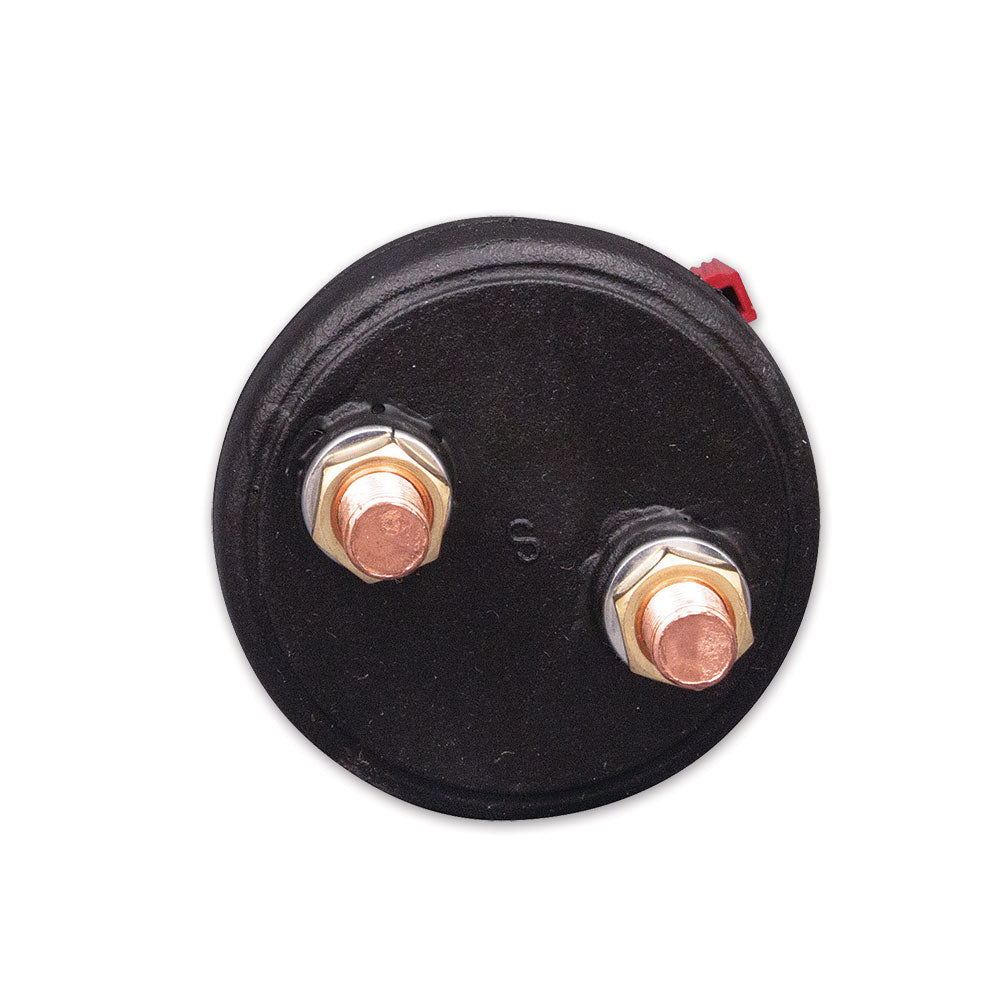

  • Back of switch is weatherproof

May require drilling a 3/4" hole

California Proposition 65 Statement
Prop 65 Statement
Specifications

Switch

  • Switch Activation:Manual
  • Switch Actuation:Rotary
  • Voltage Rating:6-36 volts
  • Continuous Amperage Rating:175 amps
  • Peak Amperage Rating:1000 amps
  • Alternator Disconnect Included:No
  • Weatherproof:Yes
  • Mounting Panel Included:Yes
  • Mounting Hole Size:0.730"
  • Body Diameter (At largest point):2.647"
  • Body Depth (From end of threads to lock washer):2.980"
  • Overall Depth:4.216"
  • Stud Size:3/8"

Panel

  • Material:Lightweight aluminum
  • Finish:Black anodized
  • Dimensions:3 3/8" x 3 5/8"
  • Fits Longacre Panel Bracket:No
Description

The backside of the switch is completely sealed and weatherproofed with a tough, waterproof polymer coating. Keeps out dirt, dust and moisture!

  • Manual battery disconnect switch with a bright red handle
  • Easier to find in an emergency
  • Prevents battery drain
  • 175 amp continuous rating, 6-36 volt, 1000 peak
  • Great looking Aluminum Panel - black anodized with clean, modern graphics
  • Back of switch is weatherproof

May require drilling a 3/4" hole

California Proposition 65 Statement
Specifications

Switch

  • Switch Activation:Manual
  • Switch Actuation:Rotary
  • Voltage Rating:6-36 volts
  • Continuous Amperage Rating:175 amps
  • Peak Amperage Rating:1000 amps
  • Alternator Disconnect Included:No
  • Weatherproof:Yes
  • Mounting Panel Included:Yes
  • Mounting Hole Size:0.730"
  • Body Diameter (At largest point):2.647"
  • Body Depth (From end of threads to lock washer):2.980"
  • Overall Depth:4.216"
  • Stud Size:3/8"

Panel

  • Material:Lightweight aluminum
  • Finish:Black anodized
  • Dimensions:3 3/8" x 3 5/8"
  • Fits Longacre Panel Bracket:No

Weatherproof Battery Disconnect w/ Panel - 2 Terminal

Item Number: 52-45754
